The Vortex Diamondback Tactical 4-12×40 VMR-1 MOA Riflescope offers a variety of features and details for long-distance and ranging capabilities. Made from aircraft-grade aluminum, the Vortex Diamondback Tactical 4 12×40 is durable for long-lasting use and shockproof to withstand any recoil and impact. Featuring XDTM lens elements and XRTM multi-coated lens, the Vortex Diamondback Tactical 4 12×40 increases light transmission, resolution, and color fidelity for sharp, crisp images. Designed with waterproof and fog proof elements, both the interior and exterior of this riflescope are protected from weather conditions and more. With dialing elevation and windage features, the Vortex Diamondback Tactical 4 12×40 riflescope offers fast and accurate action that’s needed for long-distance ranges. For a quality riflescope, start with the Vortex Diamondback Tactical 4-12×40 VMR-1 MOA Riflescope.

Optics Features:

Second focal plane reticle maintains the same ideal-sizes appearance
XD^TM lens elements increase resolution and color fidelity for sharp, clear images
XR^TM fully multi-coated lens to increase light transmission, anti-reflective coatings on all air-to-glass surfaces

Construction Features:

Tube size offers versatility
Shockproof to withstand recoil and impact
Fogproof over a wide range of temperatures
Aircraft-grade aluminum for strength and durability
Hard anodized finish for low-glare to help camouflage shooter
Precision-Glide Erector system allows zoom to easily transition between magnification
O-ring seals for waterproofness and prevents dust and debris from reaching the interior

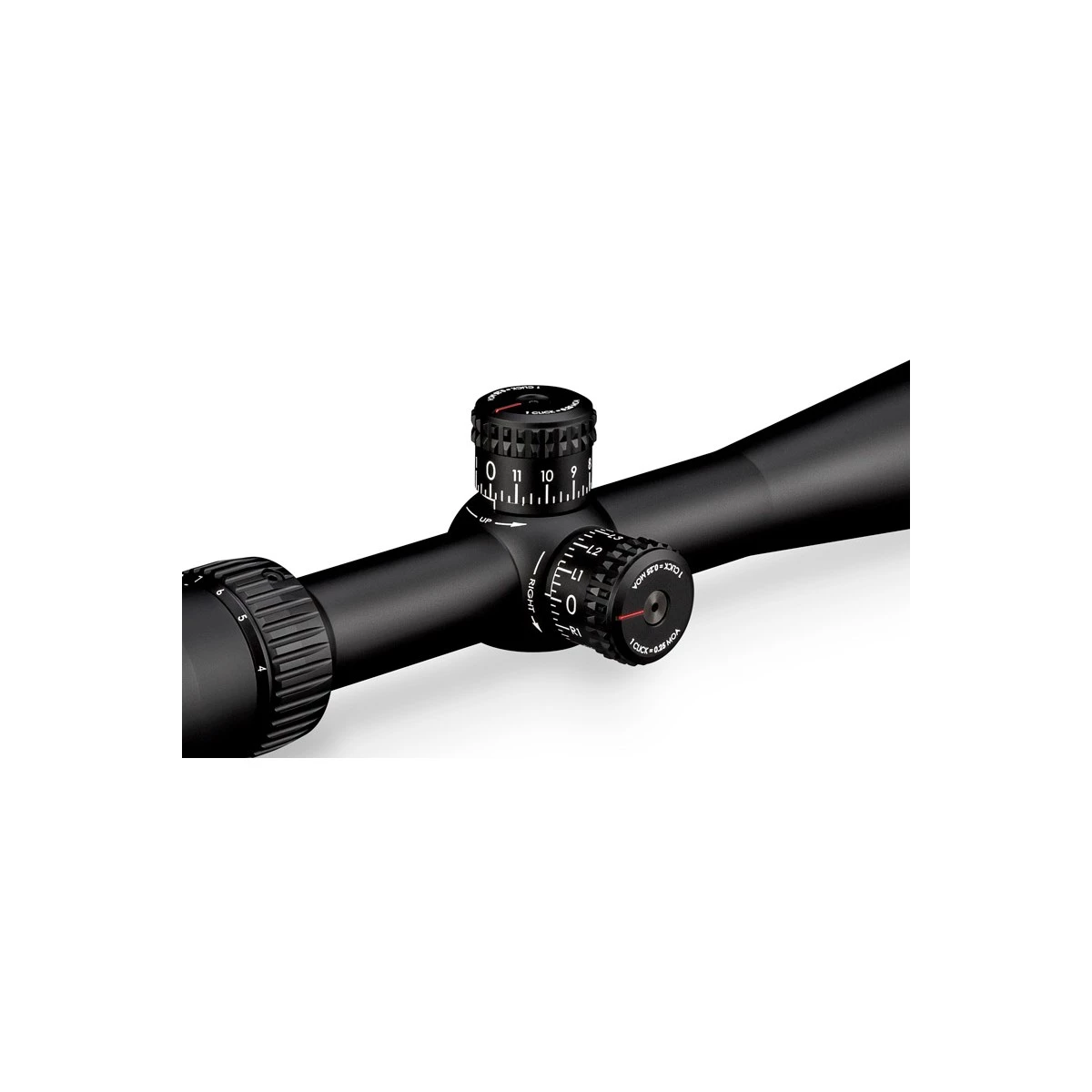

Exposed tactical-style turrets for fast, accurate, and easy-to-read elevation and windage adjustments

Features:

Quick and easy reticle focusing
Magnification rib for fast magnification changes
Radius bar for a visible point of reference for turret rotations

Specs:

Model #: DBK-10025
Tube Size: 1 in.
Weight: 17.5 oz.
Length: 14.08 in.
Eye Relief: 3.9 in.
Magnification: 4-12x
Turret Style: Tactical
Parallax Setting: 100 yds.
Travel Per Rotation: 12 MOA
Objective Lens Diameter: 40mm
Adjustment Graduation: 1/4 MOA
Field of View: 23.6-7.9 ft. / 100 yds.
Max Elevation Adjustment: 70 MOA
Max Windage Adjustment: 70 MOA
Reticle: VMR-1
- Maximizes long-distance and ranging abilities
- Used effectively to determine ranges, holdovers, windage corrections, and moving target leads
